| Size | M3-M48 or non-standard as request&design |
| Finish | Plain, black oxide , Zinc Electroplating,Hot Dip Galvanizing,Copper plating, Nickel plating,Zinc impregnation,ETC. |
| Material | Carbon steel、Stainless steel |
| Grade | 4，8，10，12 |
| Standard | GB, DIN, ISO, ANSI/ASTM, BS, JIS,ETC. |
| Non-standards | OEM is available, according to drawing or samples. |
| Samples | Samples are free. |
| Package | Wooden boxes, pallet, cartons, plastic bags, nylon bags. |
ASME B18.21.1 Helical Spring-Lock Washers
Inch Series Spring Lock Washers, including regular type, heavy type, extra duty and high-collar type. Its made of spring steels, 65Mn or #70 steels or stainless steels. Intended for general applictions, spring lock washers compensate for developed looseness between component parts of an assembly, distrbute the load over a larger area for some head styles, and provide a hardend bearing surface. The steel spring lock washers could be in zinc coated, yellow zinc coated, hot dipper galvanized and black oxide.
ASME B18.21.1 Standard Specifications Check List
Regular type spring-lock washers

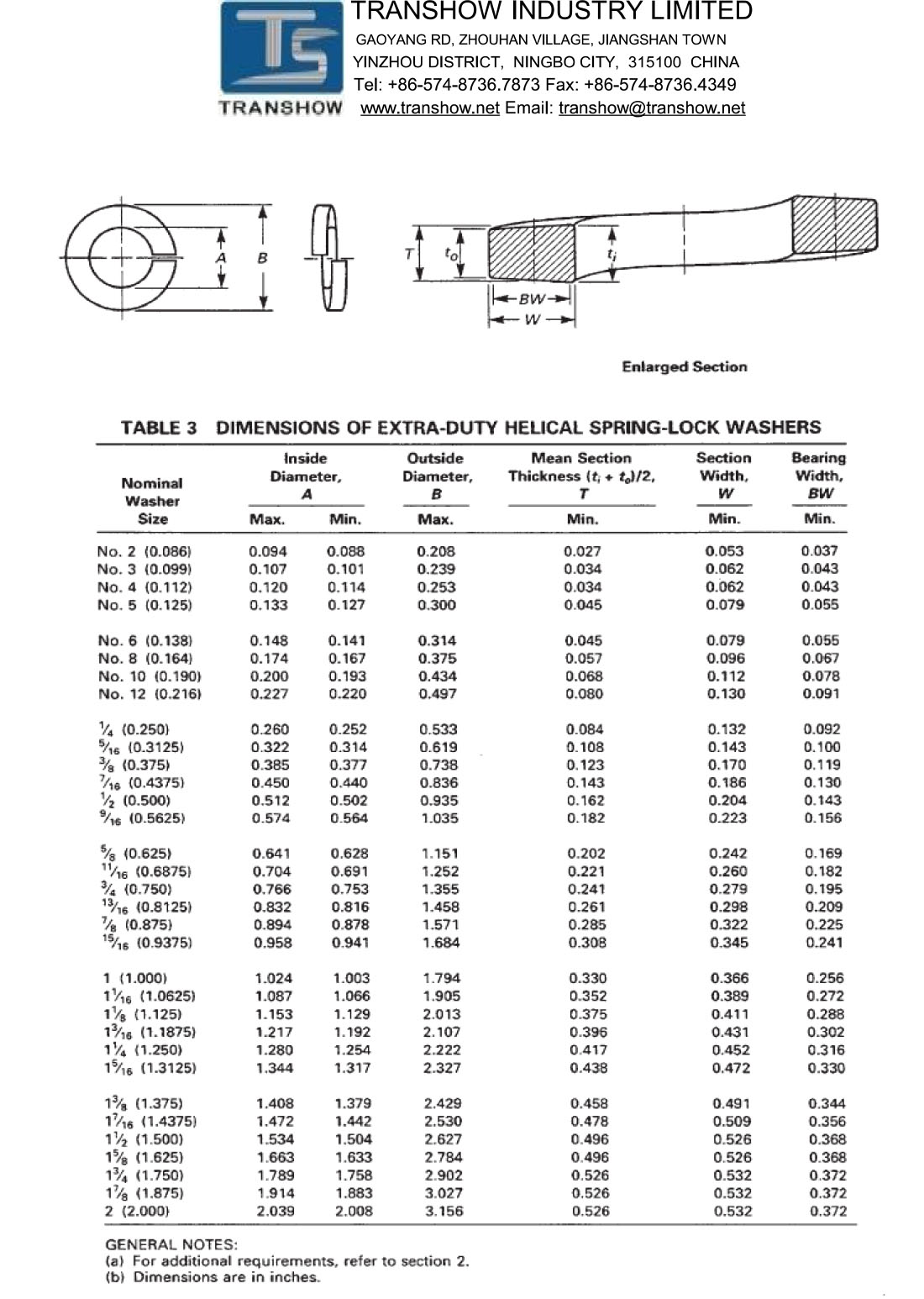

Extra-duty helical spring lock washers
High Collar helical spring lock washers
Heavy type helical spring lock washers
Common Used Materials & Hardness
Carbon Steel, 38 to 46 HRC (372 to 458 HV)
Stainless Steel, 35 to 43 HRC (345 to 423 HV)
Aluminium Alloy, 75 to 97 HRB (137 to 222 HV)
Phosphor Bronze, Min 90 HRB (185 HV Min.)
Silicon Bronze, Min 90 HRB (185 HV Min.)
Nickel-Copper-Alu, 33 to 40 HRC (327 to 392HV)
Alloy Steel, 38 to 46 HRC (372 to 458 HV)
Regular Supply Specifications (Nominal Sizes):
1/8" up to 2" (inch)
