| Size | M3-M48 or non-standard as request&design |
| Finish | Plain, black oxide , Zinc Electroplating,Hot Dip Galvanizing,Copper plating, Nickel plating,Zinc impregnation,ETC. |
| Material | Carbon steel、Stainless steel |
| Grade | 4，8，10，12 |
| Standard | GB, DIN, ISO, ANSI/ASTM, BS, JIS,ETC. |
| Non-standards | OEM is available, according to drawing or samples. |
| Samples | Samples are free. |
| Package | Wooden boxes, pallet, cartons, plastic bags, nylon bags. |

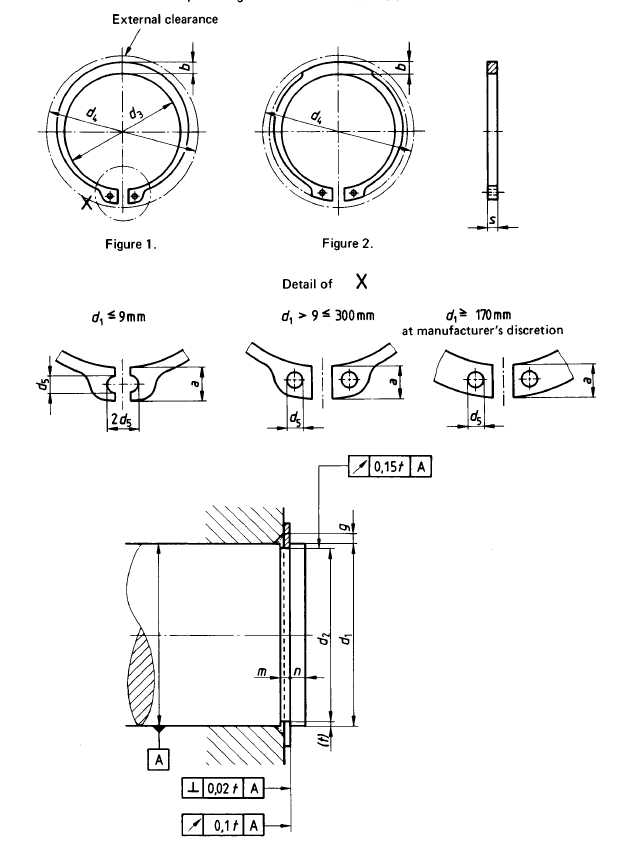

DIN471 external circlip is a type of retaining ring for holding structural components, e.g. rolling bearings on a shaft. Its given an eccentric shape, fitted with spring retention in grooves and suitable for the transmission of axial forces.
The general material used for external circlips are C75 or CK75 spring steels, 65Mn steels and stainless steels with an extra anti-corrosion treatment of phosphatized or oiled.
