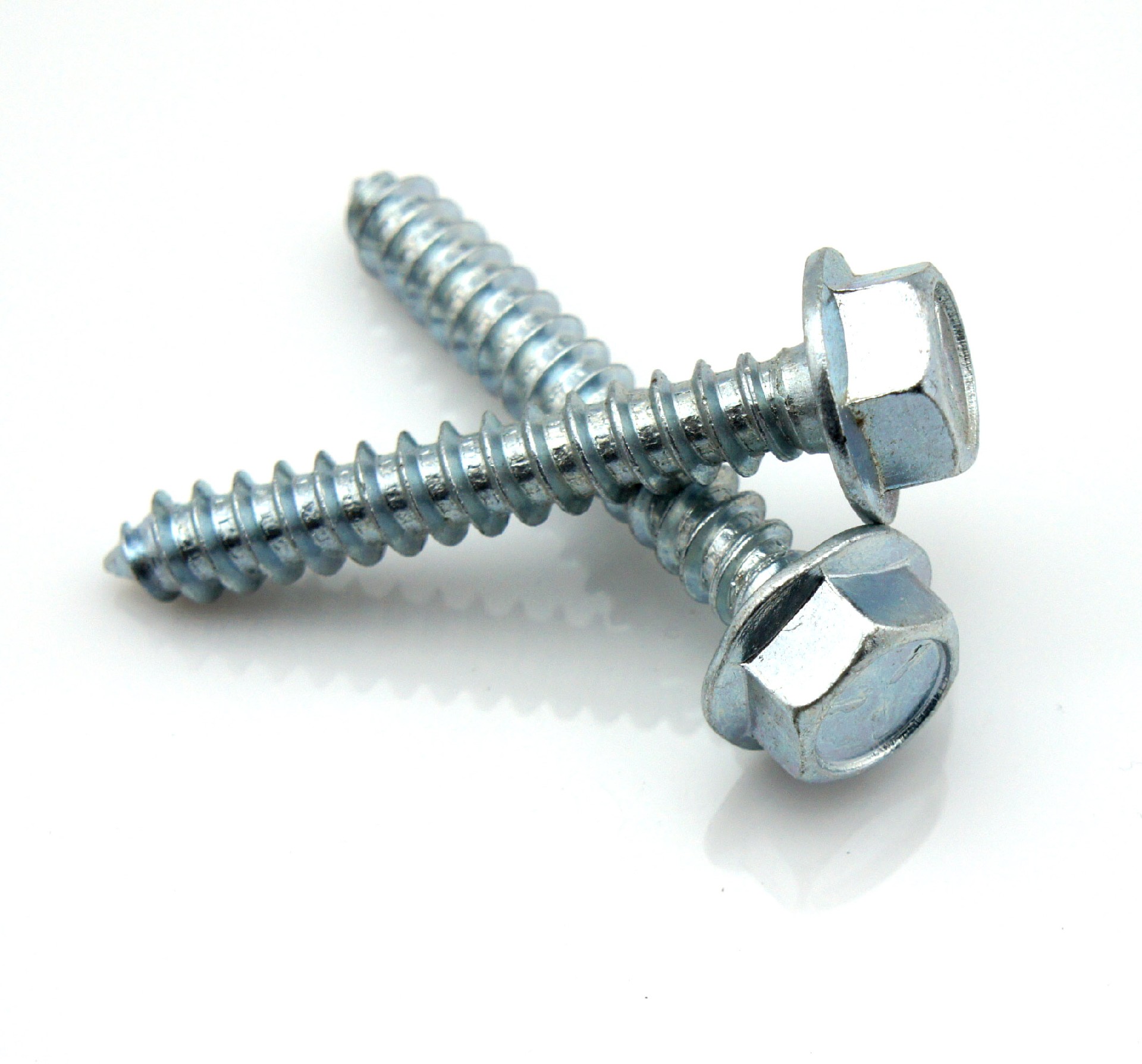

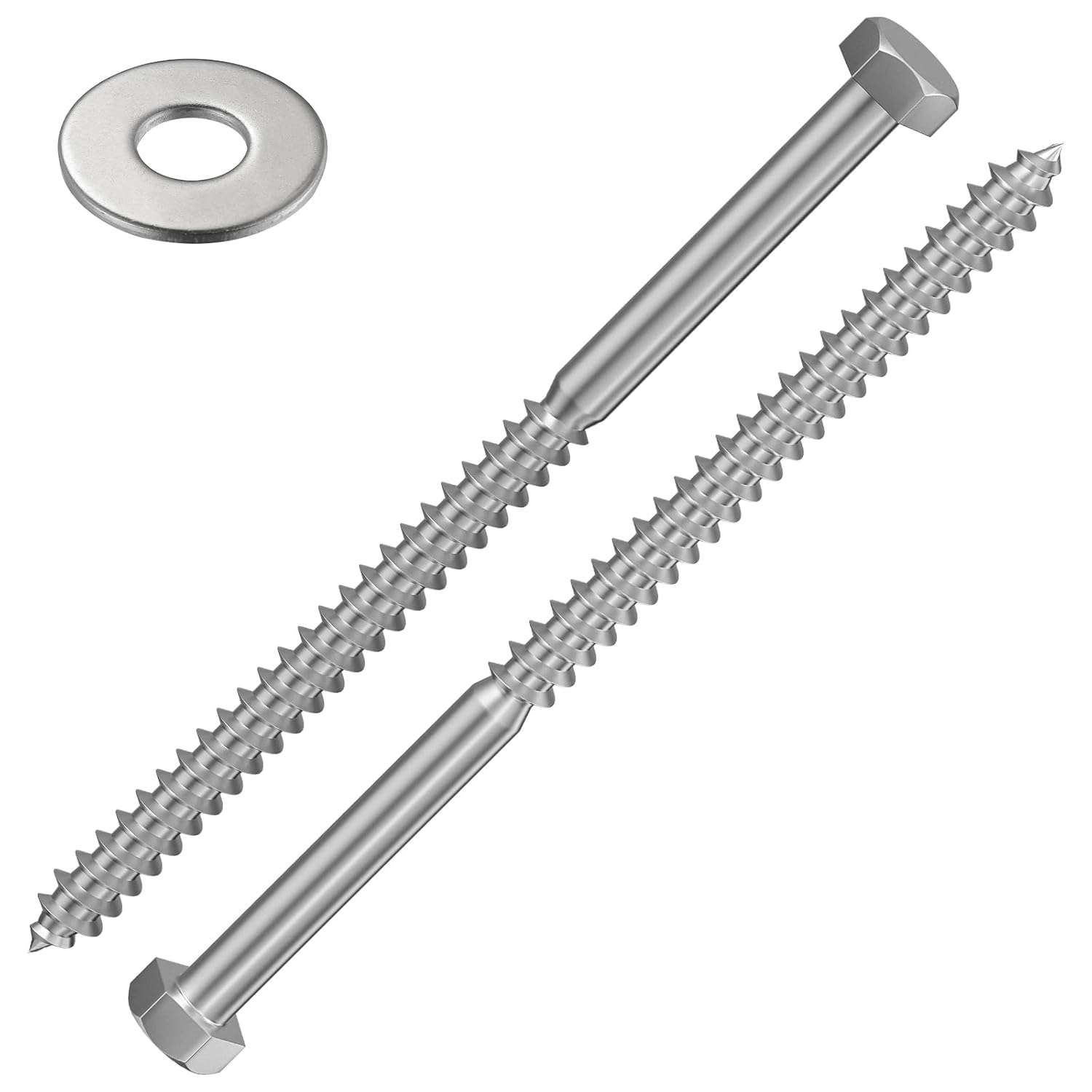

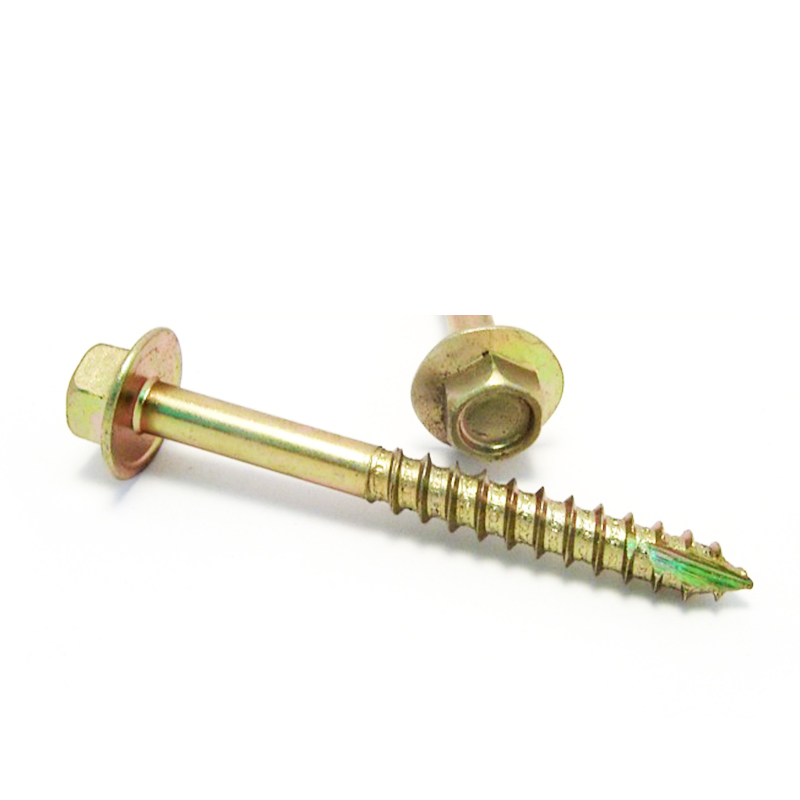

DIN571 Galvanzied Hex Flange Head Wood Coach Hex Lag Screw Self Tapping Screw
| Product name | Hex Head Wood Screw, Hex Lag Screw |
| Standard | DIN571 or ANSI/ASME B18.2.1 IFI C-1 (Customized screws acceptable) |
| Grade | Class 4.8, 8.8 (DIN); Grade 2, 5, 8 (SAE J429) |
| Material | Steel C1008, C1020, C1035, C1045 |
| Specifications Supply Metric Size | M6 to M16 thread, 16 to 420mm length |
| Inch size | 1/4 to 5/8 thread size, 1-1/2 to 16 inch length (Or customized dimensions!) |
| Surface Treatment Steel | ZP, YZP, BZP, HDG |
| Dacromet or Nickle, Chrome and brass coated | |
| Head mark | According to customer's requirement |
| Remarks | OEM/ODM is available according to customer's drawing and samples |
